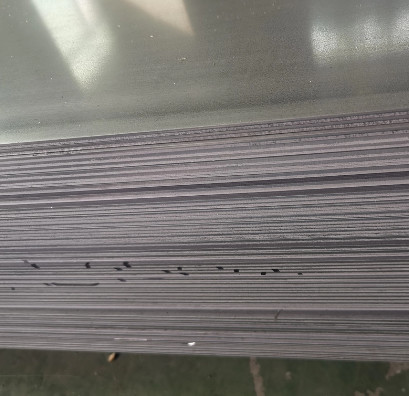

Q235 Carbon Steel Sheet 30mm Thickness 1500mm Width JIS Standard
Use Hot - Rolled Industry.Q235 Carbon Steel Sheet 30mm Thickness
1500mm Width JIS Standard Use Hot-Rolled Industry.Mild steel sheets
is a type of low carbon steel sheets. Carbon steels sheets are
metals that contain a small percentage of carbon (max 2.1%) which
enhances the properties of pure iron.There are different grades of
mild steel sheets. The carbon content varies depending on the
requirements for the steel. Carbon steel is classified according to
the name: pig iron, carbon structural steel, high-quality carbon
structural steel, low alloy structural steel, alloy structural
steel, spring steel and bearing steel, tool steel, stainless steel
and heat-resistant steel, etc.
1. Supplementary Technology:
Hot rolled, controlled rolling, normalizing, annealed tempering.
Normalizing+ tempering, hardening + tempering.
HIC, SSC, SPWHT, third Party Test.
2. Size:
Thickness : 8mm-150mm
Width : 1000mm-4000mm
Length : 1000mm-20000mm
3. Chemical Composition:
| Steel Grade | Number | C | Si | Mn | Pmax | Smax | Altotal | N | Cr | Cub | Mo | | 16Mo3 | 1.5415 | 0.12 to 0.20 | ≤0.35 | 0.40to0.90 | 0.025 | 0.01 | e | ≤0.012 | ≤0.30 | ≤0.30 | 0.25to0.35 |
|
| Steel Grade | Delivery State | Thickness mm | Yield Strength Mpa≥ | Tensile Strength | Elongation %≥ | Minimum Impact Power of Temperature | | name | number | Mpa | -20 | 0 | 20 | | 16Mo3 | 1.5415 | +Ne | ≤16 | 275 | 440~590 | 22 | f | f | 31 | | 16<t≤40 | 270 | | 40<t≤60 | 260 | | 60<t≤100 | 240 | 430~560 | | 100<t≤150 | 220 | 420~570 | | 150<t≤250 | 210 | 410~570 |
|
You could also ask for other special treatment.We have a carbon
steel processing factory in Wuxi.
4. Standard:
GB,ASTM,AISI,BS,JIS,DIN,EN
5. Packing:
Standard stainless steel shipping packaging or as customer
required.
